C for room inside
D for room outside

With discharge circuit

Rated output power

With controlled circuit loop

With strong field excitation mode

3-phase bridge-type

diode commutation mode

This product series features keeping low excitation (DC200V) while holding the materials to be handled with strong excitation (DC290V),which can reduce the power consumption as well as increase the holding capacity and generally improve the operation efficiency up to 15% -30% .lt is the ideal corollary equipment to he used for bulk materials handling on site such as scrap steel and etc.

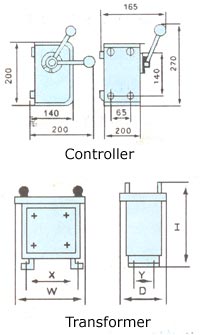

overall dimension sketch

Main technical data

Model	input voltage	output voltage	output power  (kw)	controlling cabinet						Main rectiformer
				overall dimension (mm)					Mass (kg)	Model	overall dimension (mm)					Mass (kg)
				W	D	H	X	Y			W	D	H	X	Y
STQOL-9E-C	AC380V/3Φ	DC290/220	15.6/7.4	1000	400	1450	960	400	160	ZSG-11/0.5	450	400	480	385	310	190
STQ0L-14E-C	AC380V/3Φ	DC290/220	24.2/11.5						180	ZSG-11/0.5						190
STQ0L-19E-C	AC380V/3Φ	DC290/220	32.7/15.5						200	ZSG-15/0.5	550	480	625	450	380	195
STQ0L-25E-C	AC380V/3Φ	DC290/220	43.4/20.7	1000	450	1750	960	400	230	ZSG-25/0.5						200
STQ0L-32E-C	AC380V/3Φ	DC290/220	55.6/26.4						250	ZSG-30/0.5	600	510	675	500	410	210
STQOL-38E-C	AC380V/3Φ	DC290/220	66/31.6						330	ZSG-40/0.5						210
