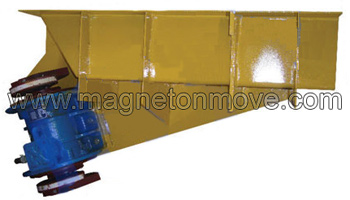

YXDZ series vibrating feeders can be used in many industries, including metallurgy, coal, chemicals, building materials, ceramics, abrasives, food and so on. The vibrating feeder can feed materials of block, powder and compound shapes from stock bin to the processing equipment uniformly, quantificationally and continuously, quite suitable for automatic proportioning, quantitative packaging and automatic control.
| Model | Productivity ≤T/h |
Feeding Tough Size B×L×H (mm) |
Granularity ≤mm |
Vibrating Motor | |
|---|---|---|---|---|---|
| Model | Power (kw) | ||||
| YXDZ60-4 | 85 | 600×1200×250 | 50 | 16-4 | 0.75×2 |
| YXDZ70-4 | 100 | 700×1300×280 | 50 | 16-4 | 0.75×2 |
| YXDZ80-4 | 200 | 800×1600×300 | 50 | 16-4 | 0.75×2 |
| YXDZ90-4 | 220 | 900×1600×350 | 50 | 20-4 | 1.1×2 |
| YXDZ100-4 | 240 | 1000×1600×350 | 50 | 32-4 | 1.5×2 |
| YXDZ110-4 | 400 | 1100×1800×400 | 50 | 32-4 | 1.5×2 |
| YXDZ120-4 | 440 | 1200×2000×400 | 50 | 32-4 | 1.5×2 |
| YXDZ80-6 | 160 | 800×1600×300 | 50 | 30-6 | 2.2×2 |
| YXDZ110-6 | 320 | 1000×1600×350 | 50 | 50-6 | 3.7×2 |
| YXDZ150-4 | 500 | 1500×2200×400 | 50 | 50-6 | 3.7×2 |
