The small diameter round electromagnet is suitable for lifting and transporting single piece of thin steel plate and long steel plate.It can he used as electromagnetic clamping device in the operating machinery,also can he used as electromagnetic hand to hold extremely small materials. Please pay attention to thickness.width,length and weight of steel plate when choosing model so that you can have the exact electromagnet and control equipment with the fittest model and specifications.
| Model | MW04-17T | MW04-22T | MW04-32T | MW04-40T | ||||||
|---|---|---|---|---|---|---|---|---|---|---|

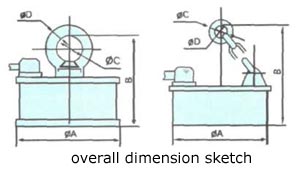

| overall dimension | A | 165 | 216 | 318 | 406 | |||||
| B | 113 | 147 | 178 | 480 | ||||||
| C | 30 | 40 | 60 | 100/55 | ||||||
| D | 10 | 16 | 25 | 16 | ||||||
| Mass (kg) | 7 | 15 | 30 | 75 | ||||||
| power (kw) | 0.10 | 0.20 | 0.25 | 0.40 | ||||||
| ( mm ) max.size of lifted material by single unit |
1200×1200 | 1400×1400 | 1600×1600 | 2500×2500 | ||||||
| ( mm ) Average share size of lifted material by multiple units |
600×1200 | 700×1400 | 800×1600 | 1000×2500 1 | ||||||
| attracting power | thickness of plate | δ 3.2 | δ 5 | δ 6 | δ 10 | δ 10 | δ 20 | δ 12 | δ 32 | |
| peripheric fixing | >100kg | >200kg | >300kg | >600kg | >800kg | >2000kg | >4OO0kg | |||
