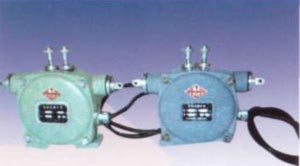

SLKS series double end safe switch

DESCRIBE
SLKS series double end safe switch is a kind of protect equipment use for stop of urgent accident of belt conveyor,It was in stall to two side of conveyor with
DESCRIPTION

SLKS series double end safe switch is a kind of protect equipment use for stop of urgent accident of belt conveyor,It was in stall to two side of conveyor with steel wire.

double end safe switch, protect equipment for belt conveyor, magnetic separation system

Double end safe switch both side motion and have independent character, Operator may drag steel wire at any position of belt conveyor when urgent according occur in any position of converor, it may control switch and cut off circuit so conveyor stop that ensure safe of men and equipment.

model trigger quantity trigger copacity norpzal travel \ limit travel control telt length action strength reduce way weight
normal open circait normal close
SLKS -100 1 1 ≤380V voItage
≤2A current
12±2mm \30 ± 2mm ≤100m 120±20 N hand-reduce 3kg
SLKZ -100 1 1 ≤380V voItage
≤4A
current
12±2mm \30 ± 2mm ≤100m 130±20 N auto-reduce
