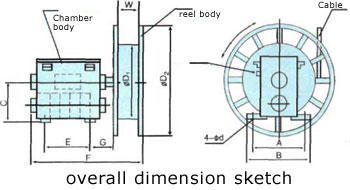

| Contour items | A | B | C | D1 | D2 | d | E | F | G | W | (kg) Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 410 | 450 | 462 | 800 | 1300 | 18 | 520 | 1010 | 105 | 250 | 360 |
| 2 | 410 | 450 | 462 | 1000 | 1300 | 18 | 520 | 1010 | 105 | 250 | 380 |
| Cable Model | Enabled Current | 50m Series |
Contour Item | 60m Series | Contour Item | 70m Series |
Contour Item | 80m Series | Contour Item | 100mSeries | Contour Item | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuously | Imin.On/Off | |||||||||||
| YC 3×25+1×10 |
91 | 125 | JTC125-60-4-Ⅲ | 1 | JTC125-70-4-I | 1 | ||||||
| JTD125-60-4-Ⅲ | JTD125-70-4-Ⅲ | |||||||||||
| YC 3×35+1×10 |
113 | 150 | JTC150-50-4-I | 1 | JTC150-60-4-Ⅲ JTD150-60-4-Ⅲ | 1 | JTC150-70-4-Ⅲ | 1 | ||||
| JTD150-50-4-I | JTD150-70-4-Ⅲ | |||||||||||
| YC 3×50+1×16 |
140 | 190 | JTC190-50-4-I | 1 | ||||||||
| JTD190-50-4-Ⅲ | ||||||||||||
| UC 3×35+1×6+4×4 |
110 | 150 | JTC150-50-8-Ⅲ | 1 | JTC150-60-8-Ⅲ | 1 | ||||||
| JTD150-50-8-Ⅲ | JTD150-60-8-Ⅲ | |||||||||||
| CRHF 10×2.5 |
12 | 20 | JTC20-60-10-1 | 1 | JTC20-70-10-Ⅲ | 1 | ||||||
| JTD20-60-10-Ⅲ | JTD20-70-10-I | |||||||||||
| CRHF 12×2.5 |
12 | 20 | JTC20-60-12-I | 1 | JTC20-70-12-I | 1 | ||||||
| JTD20-60-12-I | JTD20-70-12-I | |||||||||||
| YC 3×10+1×6 |
50 | 65 | JTD65-80-4-I | 2 | JTD65-100-4-Ⅲ | 2 | ||||||
| YC 3×16+1×6 |
60 | 85 | JTD85-80-4-I | JTD85-100-4-Ⅲ | ||||||||
