Lifting Electromagnet

DESCRIBE

Lifting Elertromagnet Model Series MW16 for Handling Steel Band Rolls Main technical dataDC-220V, TD-60% Model overall dimension (mm) current (A) p

INQUIRY

DESCRIPTION

Lifting Elertromagnet Model Series MW16 for Handling Steel Band Rolls

Lifting Elertromagnet for Handling Steel Band Rolls, magnetic lifting device, magnetic lifting equipment, Electric chain hoist

Main technical dataDC-220V, TD-60%

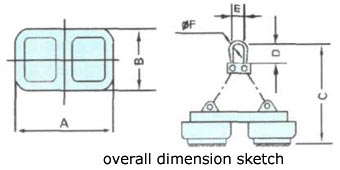

Model			overall dimension (mm)						current (A)	power (kw)	Mass (kg)	(t) weight	-steel band roll
Model			A	B	C	D	E	F	current (A)	power (kw)	Mass (kg)	(t) weight	outside diameter	(mm) width
Series MW16	Vertical lift	MW16-190190L/G	1920	900	1500	250	170	85	70	15.4	4400	16	1700	1220
		MW16-220100L/G	2230	1050	1800	250	170	85	68	15	6600	21	2000	1320
		MW16-250135L/G	2500	1350	2500	500	230	115	91	20	10000	32	2160	1900
	Plane lift	MW16-13095L	1320	970	1500	250	175	50	56	12.4	3000	17	1650	1320
		MW16-14090L	1450	950	1740	310	230	50	59	13	3800	23	2000	1530
		MW16-160150L	1600	1490	2340	500	230	115	91	20	7500	32	2200	1900
	Used vertically or horizontally		1400	1200	1500	250	175	50	65	14.3	4000	14	1600	1000
		MW16MW16-140120L/G-160140L/G	1600	1400	1650	300	230	70	80	16.8	8000	24	1850	1400
		MW16-180150L/G	1800	1500	1750	370	230	75	90	19.8	9200	34	2025	1800
		MW16-190160L/G	1900	1600	1980	370	230	80	81	17.8	11800	34	2025	1800
