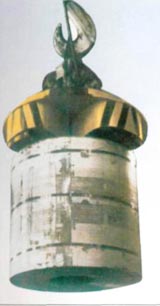

This kind of products is suitable for attracting and lifting steel band roll.The products are divided into vertical lifting & transporting type,horizontal lifting & transporting type and general type (which can lift & transport both vertically and horizontally).High -temperature special electromagnet is specially used for new annealed technological process of roll plate. It can work under high temperature of lOO℃-600℃,and lift & transport band roll vertically or horizontally.
Vertical lifting & transporting type -the electromagnet attracts and holds the end face of band roll.It is suitable for lifting and transporting packed or unpacked band roll.
Horizontal lifting & transporting type-the electromagnet attracts and holds the side face of band roll,the band roll must be packed and bunched.
| Model | overall dimension(mm) | current (A) |
power (kw) | Mass (kg) |
steel band roll | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | (t) weight | outside diameter | (mm) width | |||||
| Series MW26 | MW26-120120L/G | 1630 | 1400 | 250 | 170 | 85 | - | 45.5 | 10 | 2750 | 20 | 1625 | 1900 |
| MW26-130130L/G | 2030 | 1400 | 250 | 170 | 85 | - | 54.5 | 12 | 5200 | 27 | 1930 | 1900 | |
| MW26-180180L/G | 2400 | 1900 | 500 | 220 | 100 | - | 85 | 18.7 | 8500 | 30 | 2300 | 1900 | |
| MW26-190190L/G | 2500 | 1990 | 500 | 230 | 100 | - | 91 | 20 | 9600 | 32 | 2340 | 1900 | |
| MW26-220220L/G | 2950 | 2300 | 500 | 230 | 120 | - | 130 | 28.6 | 12000 | 40 | 2975 | 1900 | |
| Series MW26 | MW36-265L/G | 2650 | 1910 | 500 | 230 | 115 | - | 148 | 32.5 | 10600 | 42 | 2540 | 1900 |
| MW36-280L/G | 2770 | 2130 | 700 | 260 | 150 | - | 150 | 33 | 14000 | 60 | 2650 | 2080 | |
| MW36-285L/G | 2850 | 2130 | 700 | 260 | 150 | - | 158 | 34.7 | 15000 | 60 | 2750 | 2080 | |
| MW36-300L/G | 3020 | 2400 | 700 | 250 | 110 | - | 150 | 33 | 16000 | 60 | 2830 | 2080 | |
| MW36-315L/G | 3180 | 1700 | 500 | 220 | 90 | - | 150 | 33 | 10300 | 21 | 2900 | 1600 | |
| MW36-360L/G | 3600 | 1900 | 500 | 230 | 115 | - | 191 | 42 | 18800 | 32 | 3350 | 1900 | |
| MW36-480L/G | 4800 | 3000 | 800 | 300 | 180 | - | 236 | 52 | 35000 | 50 | 4700 | 2060 | |
