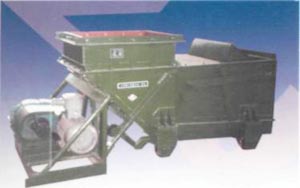

K type reciprocate give coal machine suit use for ground produce system of coal mine and coal mine and coal washing factory and power plant.It take coal from last technology equipment event even take to below technology equipment.It compose of base plate(give coat trough),drive terrace,funnel sluice,sustain roll etc.Please explain whether or not need funnel,entrance,and if use prevent explode motor when order goods.
| model | K-0 | K-1 | K-2 | K-3 | K-4 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| crank revolution(rpm) | 57 | 57 | 57 | 62 | 62 | ||||||||||||||||
| crank place | 4 | 3 | 2 | 1 | 4 | 3 | 2 | 1 | 4 | 3 | 2 | 1 | 4 | 3 | 2 | 1 | 4 | 3 | 2 | 1 | |
| base plate travel | 200 | 150 | 100 | 50 | 200 | 150 | 100 | 50 | 200 | 150 | 100 | 50 | 200 | 150 | 100 | 50 | 240 | 140 | 130 | 50 | |
| produce capacity | (t) soft coal |
90 | 67 | 45 | 22 | 135 | 100 | 68 | 31 | 200 | 150 | 100 | 50 | 300 | 210 | 150 | 75 | 530 | 390 | 260 | 130 |
| (t) anthracite |
100 | 75 | 50 | 25 | 150 | 112 | 75 | 38 | 225 | 170 | 113 | 55 | 330 | 247 | 165 | 83 | 590 | 440 | 290 | 148 | |
| motor | model | Y160M1-8 or YB160M1-8 | Y160M1-8 or YB160M1-8 | Y160M1-8 or YB160M1-8 | Y160M1-6 or YB160M1-6 | Y160M1-6 or YB160M-6 | |||||||||||||||
| (kW) power | 4 | 4 | 4 | 7.5 | 15 | ||||||||||||||||
| ( rpm) revolution speed | 720 | 720 | 720 | 960 | 970 | ||||||||||||||||
| retard machine | model | JZ0350 | JZ0350 | JZ0350 | JZQ400 | JZQ500 | |||||||||||||||
| retard ration | 12.63 | 12.63 | 12.63 | 15. 75 | 15. 75 | ||||||||||||||||
| ( mm) max metall |
max metall (contain below 10%) | 250 | 350 | 400 | 500 | 700 | |||||||||||||||
| max metell (contain above 10%) | 200 | 300 | 350 | 450 | 550 | ||||||||||||||||
| weight (kg) | with funnel | 1150 | 1253 | 1420 | 1940 | 2880 | |||||||||||||||
| no funnel | 1080 | 1157 | 1288 | 1830 | 2680 | ||||||||||||||||
