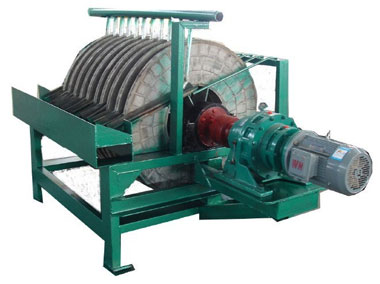

PC series disc-type permanent-magnet separator for tailings is currently one of the most commonly used tailing recycling equipments. As the specialized machine for tailing re-separation, its key features are simple structure, high flexibility, high treatment capacity and adapting to complex composition of tails. It is simple in structure, reliable in operation, easy to maintain and has high gradient of magnetic field, large-area absorbent and reliable discharge scrapper which is easy to replace.
| Parameter\Model | YQJ-PC15-4-10 | YQJ-PC10-3-10 | YQJ-PC08-3-10 |
|---|---|---|---|
| Drum Diameter (mm) | 1500 | 1000 | 800 |
| Drum width (mm) | 40 | 40 | 40 |
| Drum rotation rate (r/min) | 2 | 2 | 2 |
| Surface magnetic intensity (mT) | ≥130 | ≥130 | ≥130 |
| Operation gap (mm) | 80 | 80 | 80 |
| Treatment capacity (dry t/h) | 80~200 | 45~150 | 6~20 |
| Motor power (kW) | 3~7.5 | 2.2~5.5 | 1.5~4 |
| Total weight (kg) | 2160~4560 | 1200~3070 | 500~1900 |
