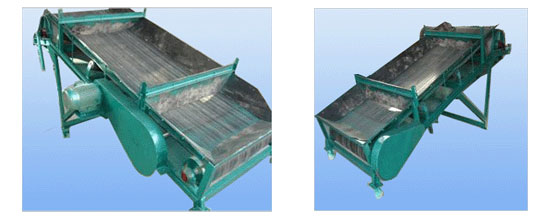

As a newly developed high efficient magnetic separator, YQJ-BXGX series dry permanent-magnet separator for recovery of stainless-steel powder slag can be widely applied in metallurgical mining, recovery of stainless steel powder slag and some other sectors. This machine type is a pioneer in the country with the features of stirring magnetic field, special magnetic structure and high separating factor. It is simple in structure, light in weight, reliable in operation and easy to maintain. With advantages of low investment, quick results, small space, low production cost, clear effects and obvious economic benefits, this separator is very suitable for inclusions removal, purification and recovery of waste stainless-steel powder slag.
| Parameter\Model | BXGX4050 | BXGX4650 | BXGX4660 | BXGX5080 | BXGX50100 |
|---|---|---|---|---|---|
| Drum Dia.×Len. (mm) | 400×520 | 460×520 | 460×550 | 500×850 | 500×1050 |
| Feed Line Speed (m/s) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
| Surface Magnetic Intensity (mT) | 300~700 | 300~700 | 300~700 | 300~700 | 300~700 |
| Max. strength of raw ore (mm) | 5~0 | 5~0 | 5~0 | 5~0 | 5~0 |
| Treatment Capacity (t/h) | 3~5 | 5~8 | 6~10 | 8~12 | 15~20 |
| Total Weight (kg) | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
| Dimensions (mm) | 3400×1100×1500 | 3400×1100×1540 | 3400×1200×1540 | 3400×1400×1540 | 3400×1600×1560 |
| Motor Power (kW) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
