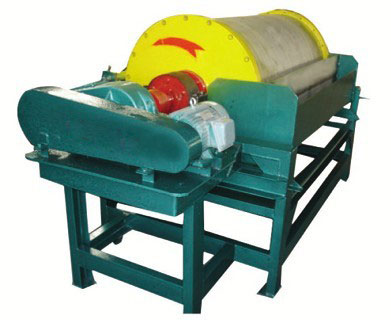

YQJ-NCT series permanent-magnet concentrating separator

DESCRIBE
Permanent-magnet Concentrating Separator Series YQJ-NCTYQJ-NCT permanent-magnet concentrating separator is a newly developed magnetic separator especially desig
DESCRIPTION

Permanent-magnet Concentrating Separator Series YQJ-NCT

permanent-magnet concentrating separator

YQJ-NCT permanent-magnet concentrating separator is a newly developed magnetic separator especially designed for adjusting concentration of magnetic ore at the upstream and downstream sections of the addressing plant. Its best features are high recovery rate, large treatment capacity and very effective concentration for minerals of strong magnetism. When the concentration of fed ore is 20%~25%, the armco-iron recovery rate can reach 99.5% or more and concentration can reach 50%~65%. This machine can completely replace space-occupying dewatering tanks and concentration basins in concentrating treatment of ores with strong magnetism.

Through optimized design, the magnetic system of the machine has a wide wrapping angle and the magnetic force is more reasonably distributed, allowing smaller drum having larger separating space to let large amount of magnetite concentrates pass and prevent usable ore from running off. This separator discharges ore with non-magnetic-zone scrappers assisted by flushing pipes with adjustable flowrate, to ensure desirable concentration rate of the ore.

For ore addressing plants with big fluctuations in the concentration of raw ore slurry, relatively stable concentration and high recovery rate can also be reached using this separator.

Main technical parameters
Parameter\Model NCT-1024 NCT-1021 NCT-1018 NCT-0821 NCT-0818 NCT-0815
Drum Diameter (mm) 1000 1000 1000 800 800 800
Drum Length (mm) 2400 2100 1800 2100 1800 1500
Drum Rotation Rate (r/min) 15 15 17.6 17.6 17.6 17.6
Surface Magnetic Intensity (mT) Ave.≥170
Strengthened zone≥220
Ave.≥170
Strengthened zone≥220
Ave.≥150
Strengthened zone≥220
Ave.≥150
Strengthened zone≥220
Ave.≥150
Strengthened zone≥220
Ave.≥150
Strengthened zone≥220
Operation Gap (mm) 40~70 40~70 35~60 35~60 35~60 35~60
Slurry Treatment Capacity (m3/h) 210~240 180~210 160~180 160~180 145~160 115~130
Motor Output (kW) 5.5 5.5 4 4 3 3
Dimensions (L/W/H) (mm) 3690×2082×1689 3690×2082×1689 440×1450×1405 3671×1450×1450 3371×1450×1405 3703×1450×1405
Total Weight (kg) 6450 5500 5000 5000 4400 3670
