ECS series non-ferrous metal magnetic separator

DESCRIBE
Non-ferrous Metal Magnetic SeparatorApplications:ECS series non-ferrous metal magnetic separator can separate the non-ferrous metal from mixed materials. At pre
DESCRIPTION

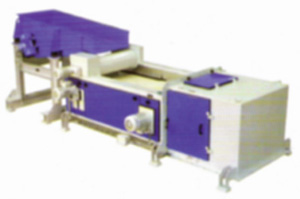

Non-ferrous Metal Magnetic Separator

Non-ferrous metal magnetic separator

Applications:

ECS series non-ferrous metal magnetic separator can separate the non-ferrous metal from mixed materials. At present, various solid wastes always contain a lot of non-ferrous metal. If these non-ferrous metals are not separated, it won’t only hinder the further process of material, but also will cause a great of wastes of resources.

The nonferrous metal separators manufactured by us can efficiently sort out the nonferrous metal like Al, Cu and etc from massive materials, highly realizing the recycle of resource, widely used in resources recycle industry. It can used to recycle the plastics, glasses, electronic waste material, city’s solid wastes, wasting alcohol bottle, auto, mixing material, industrial slag tailings and city’s wooden wastes and to separation of metal mixture

Feature:

  1. Easy to install and operate, with the advantage of high efficient separation.
  2. Use very strong permanent magnetic material as magnetic source, featuring stable and everlasting magnetic properties.
  3. Electrical excitation is not required, energy-saving product.
  4. Compact and reasonable structure, eary to maintain.

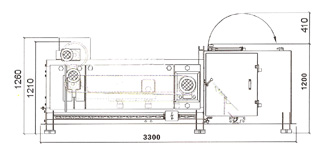

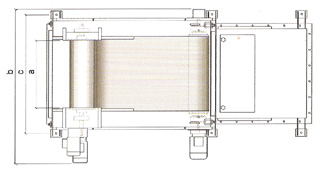

structure 1  structure 2

Specifications & Technical Parameters
Model Belt Width (a)
mm
Work Capacity
m3/h
Driving Power
kW
Outer Dimension mm Weight
kg
L W(b) H
ECS-60 600 5-8 5.5/1.1 3300 1500 1200 1200
ECS-80 800 6-10 7.5/1.5 3300 1700 1200 1400
ECS-120 1200 8-12 11/3.0 3300 2000 1200 1800
ECS-150 1500 10-15 11/3.0 3300 2300 1200 2200

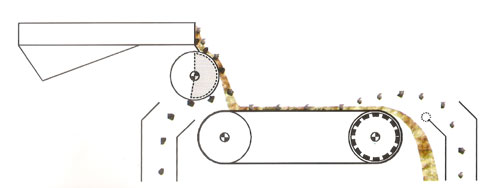

Work Flow Chart

ECS magnetic separator working flow chart
