RCYF series permanent magnetism separator

DESCRIBE
RCYF series permanent magnetic separator
Applications:RCYF series permanent magnetic separator is a kind energy saving equipment which produces strong magnetic
DESCRIPTION

RCYF series permanent magnetic separator

permanent magnetic separator
metal separator, permanent magnetism separator

Applications:

RCYF series permanent magnetic separator is a kind energy saving equipment which produces strong magnetic field attraction force by rare-earth permanent magnetism material. The series separators can be used with belt conveyors, vibration conveyors and so on to remove 0.1-25kg magnetic object from non-magnetic material to ensure normal safe work of grinders, crushers and conveyor belts on transport equipment line.

The series permanent magnetic separator may be widely used in power, metal lurgical, mining, ceramic, chemical, glass, papermaking, building materials, sugar, food, cement, coal washing factory and related industries. It may suit various adverse circumstances.

Features:

  1. Save energy by replace electromagnetic box with permanent magnetism box.
  2. Reasonable distribution of magnetic field, deeper depth effect.
  3. Good safety function and high working reliability.
  4. Ferromagnetic materials would not fall into the original material on transport belt even when power cut.
  5. Get rid of iron by motor-driving.

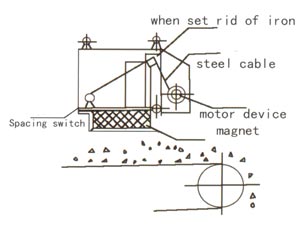

Working principle:

Ferromagnetic material of mixed non-magnetic material will be attracted on stainless steel plate of below separator by strong magnetic field attraction when transport material through permanent magnetism box below. Press control push button so magnet turn 90 degree that magnetic field transfer when ferromagnetic material be absorbed reach fixed quantity, therefore, ferromagnetic material be absorbed will drop to reach the aim of getting rid of iron.

Main technical parameters
parameter \ model \ item RCYF-4 RCYF-5 RCYF-6 RCYF-8 RCYF-10 RCYF-12
(mm) suit belt width 400 500 650 800 1000 1200
(m/s) suit belt speed ≤4
(mm)
rated suspengsion height
125 150 200 250 300 350
 (mT) rated suspensio height centre magnetic field strength ≥63 ≥65
driving power (kw) 0.75 1.5 2.2 3
weight (kg) 580 400 480 850 1500 2480
(mm) size for suspend 760×650 605×590 720×720 955×800 1045×1000 1300×1280

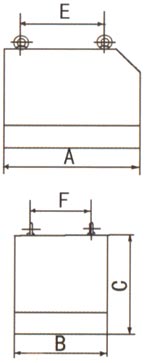

A×B ×C appearance sizes(mm) 1100×750×800 1023×730×730 1180×800×850 1400×920 ×1060 1600×1060×1280 2050×1320×1460
