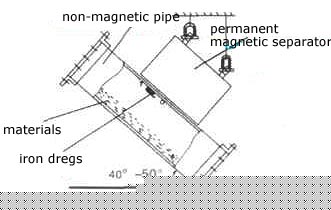

RCYA series pipe permanent-magnetic separator including non-magnetic pipe and permanent-magnet, which are specially suitable for discharging iron from non-magnetic materials in the airproof pipe. And its inner part is made of high performance rare earth magnetic materials. The rare earth series separation device is mainly used in cement industry, chemical industry, coal industry, plastic industry, fireproof material industry, construction material industry and so on.
| Model | m3/h Handling Capacity |
pipe L×W×H (mm) | permanent—magnet L×W×H (mm) |
pipe contact W×H (mm) | Mass (kg) |
|---|---|---|---|---|---|
| RCYA1-15 | 15 | 800×450×140 | 500×300×200 | 580×200 | 210 |
| RCYA1-30 | 30 | 900×550×170 | 600×400×240 | 680×230 | 260 |
| RCYA1-50 | 50 | 1000×650×190 | 700×500×240 | 800×280 | 420 |
| RCYA1-80 | 80 | 1100×750×200 | 800×600×260 | 900×300 | 825 |
| RCYA1-100 | 100 | 1200×850×220 | 1000×700×300 | 1000×320 | 1050 |
| RCYA1-150 | 120 | 1300×1000×240 | 1150×650×320 | 1100×350 | 1280 |
| RCYA1-200 | 200 | 1400×1200×280 | 1350×800×340 | 1300×380 | 1650 |
| RCYA1-300 | 300 | 1600×1400×310 | 1550×1200×380 | 1200×400 | 2400 |
