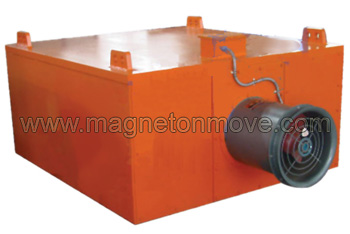

Applicable for occasions of better environment conditions, for separating iron from any materials before crusher or on the belt of conveyor, provide reliable protection for machineries such as rolling press, crusher, and vertical mill etc.
Adopt forced air cooling fan system, easy to operate and convenient for using
| Model | Conveyor Belt Width (mm) |
Rated Suspension Height (mm) |
Rated Height Magnetic Induction (Gs) |
Excitation Power (KW) |
Fan Power (KW) |
Cooling Way | Overall Dimension (mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|
| length | width | height | ||||||||
| RCDA-5 | 500 | 150 | ≥700 | ≤2 | 0.37 | Forced Cooling | 1132 | 800 | 465 | 420 |
| RCDA-6 | 650 | 200 | ≥700 | ≤3 | 0.37 | 1275 | 850 | 488 | 660 | |
| RCDA-8 | 800 | 250 | ≥700 | ≤5 | 0.55 | 1530 | 1050 | 591 | 1320 | |
| RCDA-10 | 1000 | 300 | ≥700 | ≤7 | 0.55 | 1730 | 1150 | 664 | 1710 | |
| RCDA-12 | 1200 | 350 | ≥700 | ≤9 | 1.1 | 2055 | 1500 | 751 | 2465 | |
| RCDA-14 | 1400 | 400 | ≥700 | ≤12 | 1.1 | 2245 | 1700 | 804 | 3560 | |
| RCDA-16 | 1600 | 450 | ≥700 | ≤15 | 1.5 | 2515 | 1900 | 823 | 5210 | |
| RCDA-18 | 1800 | 500 | ≥700 | ≤18 | 1.1×2 | 2784 | 2100 | 913 | 5670 | |
| RCDA-20 | 2000 | 550 | ≥700 | ≤32 | 1.5×2 | 2894 | 2300 | 950 | 7920 | |
| Note: Products with special performance requirements for used in special occasions can be designed and produced. Rated height magnetic induction can be 900Gs, 1200Gs, 1500Gs | ||||||||||

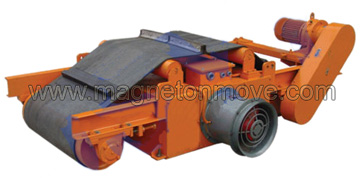

Apply to the conveying process of less dust. Can be used for separating iron from any material before crusher or on the belt of conveyor, providing dependable protection for devices such as rolling machine, crusher and vertical grinding mill etc.
Magnetic circuit is designed by computer simulation, which features large depth of penetration of magnetic field and powerful magnetic force. By adopting forced air cooling fan system, it is easy to operate and convenient for using. Self-discharge and simple for maintenance. The belt is capable to rectify a deviation automatically. The special-made full sealed bearing base helps to realize long-term trouble-free operation. Both manual-control and centralized control functions are available. It can effectively separate ferromagnetic materials which mixed in non-magnetic materials.
| Model | Conveyor Belt Width (mm) |
Rated Suspension Height (mm) |
Rated Height Magnetic Induction (Gs) |
Excitation Power (kW) |
Belt Motor Power (kW) |
Fan Power (KW) |
Cooling Way | Overall Dimension (mm) |
Weight (kg) |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| length | width | height | |||||||||
| RCDC-5 | 500 | 150 | ≥700 | ≤2 | 1.5 | 0.37 | Forced Cooling | 2160 | 1136 | 733 | 870 |
| RCDC-6 | 650 | 200 | ≥700 | ≤3 | 1.5 | 0.37 | 2240 | 1270 | 733 | 1120 | |
| RCDC-8 | 800 | 250 | ≥700 | ≤5 | 2.2 | 0.55 | 2465 | 1539 | 738 | 1595 | |
| RCDC-10 | 1000 | 300 | ≥700 | ≤7 | 3.0 | 0.55 | 2650 | 1727 | 825 | 2365 | |
| RCDC-12 | 1200 | 350 | ≥700 | ≤9 | 3.0 | 1.1 | 3090 | 2052 | 912 | 3280 | |
| RCDC-14 | 1400 | 400 | ≥700 | ≤12 | 4.0 | 1.1 | 3266 | 2243 | 974 | 4530 | |
| RCDC-16 | 1600 | 450 | ≥700 | ≤15 | 5.5 | 1.5 | 3564 | 2505 | 1032 | 6510 | |
| RCDC-18 | 1800 | 500 | ≥710 | ≤17 | 7.5 | 1.1×2 | 3910 | 2770 | 1550 | 11840 | |
| RCDC-20 | 2000 | 550 | ≥710 | ≤19 | 7.5 | 1.5×2 | 4270 | 2880 | 1560 | 13060 | |
| Note: Products with special performance requirements for used in special occasions can be designed and manufactured | |||||||||||
