Self-cooling Electromagnetic Separator Model Series RCDB RCDD PDC

DESCRIBE
ApplicationCan be used to separate iron from any materials on the conveyor belt, suitable for working under various harsh condition environments.Features Magnet
INQUIRY
DESCRIPTION

Application

Can be used to separate iron from any materials on the conveyor belt, suitable for working under various harsh condition environments.

Features

  1. Magnetic circuit is designed by computer simulation, which features large depth of penetration of magnetic field and powerful magnetic strength;
  2. Small volume, light weight, compact structure, maintenance free, no noise;
  3. The effect of self cooling ensure its normal operation, both manual control and remote control can be realized;
  4. The ferromagnetic substance mixed in non-magnetic materials can be separated effectively.
Specifications and technical parameters
Model Conveyor Belt Width
(mm)		 Rated Suspension Height
(mm)		 Rated Height Magnetic Induction
(Gs)		 Excitation Power
(KW)		 Cooling Way Overall Dimension
(mm)		 Weight
(kg)
length width height
RCDB-5 500 150 ≥700 ≤2 Natural Cooling 895 912 500 540
RCDB-6 650 200 ≥700 ≤3 1038 962 580 810
RCDB-8 800 250 ≥700 ≤5 1246 1162 680 1270
RCDB-10 1000 300 ≥700 ≤7 1445 1362 760 2130
RCDB-12 1200 350 ≥700 ≤9 1705 1612 860 3060
RCDB-14 1400 400 ≥700 ≤12 1905 1812 955 4560
RCDB-16 1600 450 ≥700 ≤15 2112 2015 1015 5950
RCDB-18 1800 500 ≥700 ≤18 2315 2212 1095 6430
RCDB-20 2000 550 ≥700 ≤32 2510 2413 1180 8740
Note: Products with special performance requirements for used in special occasions can be designed and produced.

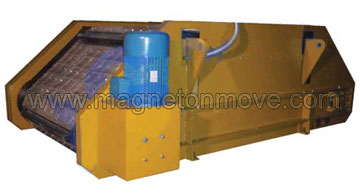

RCDD Series Self-cooling Belted Electromagnetic Separator

self-cooling belt electromagnetic separatorApplication

Can be used to separate iron from any materials on the conveyor belt, suitable for working under various hard environments.

Features

  1. Magnetic circuit is designed by computer simulation, which features large depth of penetration of magnetic field and powerful magnetic force;
  2. Self discharge, easy to maintain, the deflection of belt can be corrected automatically;
  3. The special made full air-proof bearing house ensures long-term operation without any mistake;
  4. The product features good matching property, and both manual control and centralized control are available;
  5. The ferromagnetic substance mixed in non-magnetic materials can be separated effectively.
Specifications and technical parameters
Model Conveyor Belt Width
(mm)		 Rated Suspension Height
(mm)		 Rated Height Magnetic Induction
(Gs)		 Excitation Power
(kW)		 Belt Motor Power
(kW)		 Cooling Way Overall Dimension
(mm)		 Weight
(kg)
length width height
RCDD-5 500 150 ≥700 ≤2 1.5 Natural Cooling 2090 965 740 920
RCDD-6 650 200 ≥700 ≤3 1.5 2320 1105 738 1230
RCDD-8 800 250 ≥700 ≤5 2.2 2475 1213 947 1760
RCDD-10 1000 300 ≥700 ≤7 3.0 2780 1550 1210 2850
RCDD-12 1200 350 ≥700 ≤9 3.0 3085 1673 1046 4020
RCDD-14 1400 400 ≥700 ≤12 4.0 3420 1972 1160 5500
RCDD-16 1600 450 ≥700 ≤15 5.5 3680 2100 1235 7790
RCDD-18 1800 500 ≥710 ≤17 7.5 3910 2760 1550 11800
RCDD-20 2000 550 ≥710 ≤19 7.5 4270 2580 1560 13000
Note: Products with special performance requirements for used in special occasions can be designed and manufactured

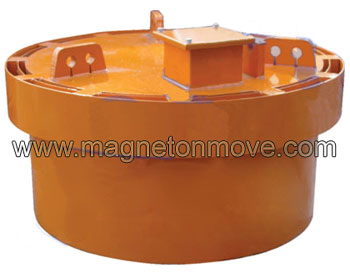

PDC Series Self-cooling Disc Electromagnetic Separator

self cooling disc electromagnetic separator

Application

Can be used to separate iron from any materials on the conveyor belt, suitable for working under various harsh condition environments.

Features

  1. Magnetic circuit is designed by computer simulation, which features large depth of penetration of magnetic field and powerful magnetic strength;
  2. Small volume, light weight, compact structure, maintenance free, no noise;
  3. The effect of self cooling ensure its normal operation, both manual control and remote control can be realized;
  4. The ferromagnetic substance mixed in non-magnetic materials can be separated effectively.
Specifications and technical parameters
Model Conveyor Belt Width
(mm)		 Rated Suspension Height
(mm)		 Rated Height Magnetic Induction
(Gs)		 Excitation Power
(KW)		 Cooling Way Overall Dimension
(mm)		 Weight
(kg)
diameter height
PDC-5 500 150 ≥700 ≤2 Natural Cooling 880 480 560
PDC-6 650 200 ≥700 ≤3 940 570 760
PDC-8 800 250 ≥700 ≤4 1110 675 1120
PDC-10 1000 300 ≥700 ≤8 1310 755 1670
PDC-12 1200 350 ≥700 ≤10 1510 855 2550
PDC-14 1400 400 ≥700 ≤12 1710 945 3450
PDC-16 1600 450 ≥700 ≤15 1910 1024 4670
PDC-18 1800 500 ≥710 ≤18 2100 1082 5610
PDC-20 2000 550 ≥710 ≤32 2300 1163 7830
Note: Products with special performance requirements for used in special occasions can be designed and produced.
