TGW series non-conductive linear flat roll, made by stainless steel of high quality and are installed under the conveyer belt to support the belt level. They are combined with hanging type separator. When the material passes through the non-magnetic flat supporting roll, it stays in a loose state and thus the iron among it appears, in this way the iron-removing rate of separator got improved largely.
Model | B (mm) Usable Belt Width | (kg) Mass |

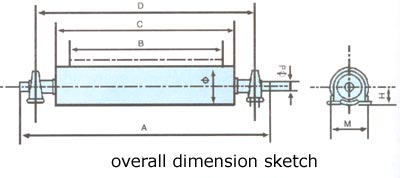

overall dimension (mm) | ||||||
---|---|---|---|---|---|---|---|---|---|
A | C | D | d | Φ | M | H | |||
TGW-50 | 500 | 15 | 780 | 640 | 720 | 35 | 108 | 126 | 47.6 |
TGW-65 | 650 | 18 | 930 | 790 | 870 | ||||
TGW-80 | 800 | 20 | 1130 | 990 | 1070 | ||||
TGW-100 | 1000 | 35 | 1375 | 1210 | 1300 | 55 | 133 | 172 | 63.5 |
TGW-120 | 1200 | 40 | 1625 | 1460 | 1550 | ||||
TGW-140 | 1400 | 43 | 1840 | 1650 | 1750 | 60 | 133 | 186 | 69.9 |
TGW-160 | 1600 | 46 | 2080 | 1890 | 1990 | ||||
TGW-180 | 1800 | 72 | 2300 | 2110 | 2210 | 65 | 159 | 203 | 76.2 |
TGW-200 | 2000 | 85 | 2490 | 2300 | 2400 |
