Self-discharge Electromagnetic Separator Model Series MC22

DESCRIBE
MC22 series electromagnetic separator is designed for long term operating tied with self-discharge function and semi-spheretic field, installed with continuous
DESCRIPTION

MC22 series Self-discharge Electromagnetic Separator

MC22 series electromagnetic separator is designed for long term operating tied with self-discharge function and semi-spheretic field, installed with continuous operating trump iron discharging conveyor which helps to throw the magnetic material into the iron collection tray. It is moving the magnetic iron particles from the bed of the material and materials under bigger granularity, such as ores, coals, hard cokes, limestone and so on.

Main technical dataTD-100%
Model T(mm) Erection height (mm)
Belt width
voltage
(V)
power (KW) overall dimension (mm) Driven power
(kw)
Mass
(kg)

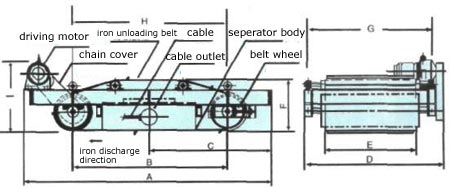

A B C D G H I Controllim
unit
MC22-5035L 140 400 110 1.02 2100 1100 1000 920 760 700 793 1.5 750 SSTM
MC22-7045L 190 600 110 1.88 2200 1350 1030 1120 915 1100 768 1.5 1250 SSTM-3.1D1
MC22-7085L 200 650 110 2.6 2730 1775 1230 1148 915 1330 760 2.2 2150
MC22-9060L 230 650 110 2.9 2360 1410 1080 1370 1165 850 780 2.2 1920
MC22-11075L 290 800 220 3.8 2980 1985 1450 1390 1375 1300 777 2.2 2660 SSTM
MC22-130140L 400 1200 220 6.8 3650 2700 1700 1800 1575 1320 860 4 6100 SSTQ-9.3DI
MC22-150110L 370 1400 220 7 3250 2050 1550 2000 1775 1400 970 4 6900
