Electromagnetic separator is an apparatus that produces huge magnetic field attraction against the magnetic particles. The separator is commonly linked up with hand conveyer, vibrating feeder and other transferring units to remove the magnetic tramp iron under weight of 0.1 -25kg from the mixed bulk materials. lt provides reliable protection for finishing machine, crusher and conveyer belt.

Electro magnetic separator has a wide range of applications in metallurgical industry, mining industry, powder industry, seaports, ceramic industry, glass making industry, cement production industry, construction material industry, chemical industry, food and forage industry and the industry of garbage disposal.

Electromagentic separator made by Yuxiang is designed and developed based on the advanced technology introduced abroad using computer optimization design, featuring large magnetic potential, higher permeability, strong magnetic force, low energy consumption, good environment suitability, safety and reliability. We can provide electromagnetic separator and permanent magnetic separator of varieties of series and specifications to meet the requirements of the different field excitation modes and operation enivronments.

Main features of electromagnetic separator

1. Rugged-all-welded construction can efficiently prevent the coil from erosion of moisture, dust and harmful gas. Good environment and climate suitability, safe and reliable in operation and convenient maintenance.
2. The magnetic circuit is designed in optimization with deeper permeability,and its geometrical figure in the space magnetic field shaped semi-sphere so that will produce much stronger magnetic force compared with the other wares.
3. Field winding coil treated by vacuum desiccation and filled with special packing material to improve its mechanical and electrical performances and keep a long service life.
4. Easy to form a complete set with other equipments to meet the different requirements under all kinds of circumstances.The relevant commutating equipments have complete functions available.

Main features of permanent magnetic separator

1. Permanet magnetic box instead of energizing coil to save power and energy.
2. Reasonable magnetic field contribution; farther permeability depth; invariable magnetic field; low attenuation.
3. Easy to be installed and maintained without using commutation controlling units.
4. We shall design and manufacture the magnetic picking-up equipments according to the special requirements from the customers. Please consult us if there is any question or recommendations.

Model designation

Derived code:"T" stands for copper lead
"L" stands for aluminum lead

Basic specifications code:stands for its diameter of round structure; stands for its length and width of square structure; stands for its diameter and length of wheel type and roller type structure.

Design code

Magnetic polarity structure code; "0"stands for round structure;" 1"stands for square structure;"2" stands for rectangular structure

"C"stands for suspended separator; "L"stands for wheel type separator;

Excitation mode:"M" stands for electromagnet type "Y" stands for permanent magnet type

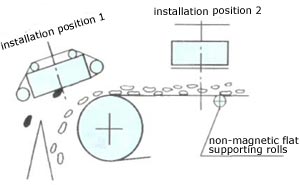

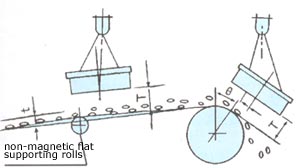

Magnetic Separator Installation Position
