The product series will be available to form a complete set with round rectangular electromagnetic separator and electromagnetic pulley which operate at continuous shifts.It adopts bridge commutating code and has two operating modes:cabinet or operation panel switch and botton integral control.According to its completeness,there are single integrated commutatuing control unit and double integrated commutating control unit.According to its completeness,there are single integrated commutating control protection type.Outdoor protection type features water -proof, anti -dust and corrosion resistance,suitable for long term open-air operation.

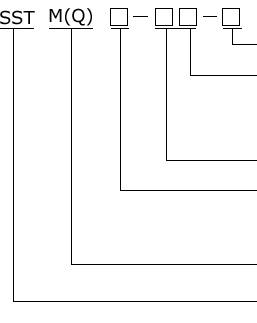

D for indoor type ;W for outdoor type;J for simple type
D for continuous field excitation at 100% operating shift (normal type)
S for continuous field excitation timed discharging irons (timed discharging irons type)
T for metal detector,auto cycling (energy-saving type)
Max,output power(KW)
No mark stands for single control unit. 2:Stands for two control units

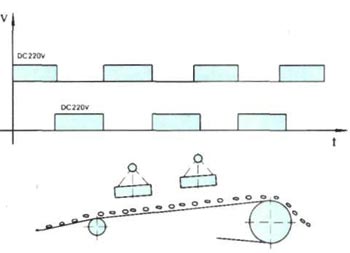

21:for two separators integrated one conveying bell
22:for two separators integrated two conveying belts
Commutating voltage phase number.M for single phase 380V.Q for 3 phases,380V
Electromagnet separator commutation controlling unit
| Model | Input voltage | Output voltage | (kw) Power | overall dimension (mm) | (kg) Mass | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | X | Y | ||||||
| Indoors protective type | SSTM-1.5D/48V-D | AC-380V | DC-48V | 1.5 | 500 | 450 | 1200 | 466 | 310 | 180 |
| SSTM-1.5D-D | AC-380V | DC-110V | 1.5 | 500 | 450 | 1200 | 466 | 310 | 180 | |
| SSTM-3.1D-D | 3.1 | 190 | | ||||||||
| SSTM-4.2D-D | 4.2 | 210 | ||||||||
| SSTM-6.2D-D | DC-220V | 6.2 | 200 | |||||||
| SSTQ-9.3D-D | 9.3 | 700 | 530 | 1500 | 600 | 440 | 360 | |||
| SSTQ-12D-D | 12 | 380 | ||||||||
| Outdoors protective type | SSTM-1.5□□-W | AC-380V | DC-110V | 1.5 | 770 | 590 | 1500 | 700 | 540 | 240 |
| SSTM-3.1□□-W | 3.1 | 250 | ||||||||
| SSTM-4.2□□-W | 4.2 | 260 | ||||||||
| SSTM-6.2□□-W | DC-220V | 6.2 | 270 | |||||||
| SSTQ-9.3□□-W | 9.3 | 920 | 680 | 1570 | 750 | 650 | 520 | |||
| SSTQ-12□□-W | 12 | 560 | ||||||||
Notes:The rated voltage of matched separator shall be in conform with the output voltage of the commutation controlling unit.The total cold power consumption of two separators shall be less than or equal to the rated output power of commutation controlling unit.
This product series is mainly designed for the customers such as power plant and steel company etc.which equip center control chamher.lt can auto-detect on/off signals of conveying belt.auto-timed discharging irons and operate under manual, automatic and inter locked control from the customer's center control chamher.lt has signal interfaces to different working conditions with the customer.The product uses Simens.PLC as its controlling part,featuring full automation safety,reliable and high efficiency.
| Model | Input voltage | Output voltage | ( kw) Power | overall dimension (mm) | ( KW ) Rated output power | ( kg) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | X | Y | Mass | |||||
| SSTM-3.1S/PLC | AC-380V | DC-110V | 3.1 | 700 | 530 | 1500 | 600 | 400 | 0.4 | 340 |
| SSTM-6.2S / PLC | 6.2 | 360 | ||||||||
| SSTQ-9.3S / PLC | 9.3 | 900 | 800 | 380 | ||||||
| SSTQ-12S/PLC | DC-220V | 12 | 420 | |||||||
| SSTQ-19S/PLC | 19 | 0.8 | 460 | |||||||
| SSTQ-25S / PLC | 25 | 550 | ||||||||
| SSTM21-3.1S/PLC | AC-380V | DC-110V | 3.1 | 770 | 590 | 1500 | 700 | 540 | 0.4 | 390 |
| SSTM21-6.2S/PLC | 6.2 | 410 | ||||||||
| SSTQ21-9.3S/PLC | 9.3 | 920 | 680 | 1570 | 750 | 650 | 430 | |||
| SSTQ21-12S/PLC | DC-220V | 12 | 470 | |||||||
| SSTQ21-19S/PLC | 19 | 0.8 | 580 | |||||||
| SSTQ21-25S / PLC | 25 | 610 | ||||||||
