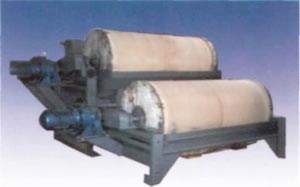

Our CT series magnetic drum separator is a wet low intensity separator with higher magnetic field, which uses new type magnetic road structrue and its drum surface magnetic induction strength is far higher than general magnetic drum separators, so may obtain tailing grade lower. This drum magnetic separator may be equipped with semi-counter-flow, counter-flow and downstream tanks, and equipped with double-drum or three drums according to customer's requirements. It has advanced structure, light weight, reliable operation and convenient for maintenance. There are two kinds of magnetic field, one is rotate type and the other is fixed type. The fixed type main use wet magnetic separation mineral of strong magnetic in weak magnetic field or get rid of mineral of strong magnetic material from non-magnetic material. The rotate type main use dry magnetic separation mineral of powder which have strong(middle strong) magnetism. Because of the effect of high speed rotate magnetic field, magnetic see the time of magnetism mineral far higher than general magnetic cobber. So have notable effect to destroy magnetic reunite and raise rich ore rate. Mineral divide ferro-magnetism material and non-magnetic material after separation, from each discharge pipe let out. The products assessed New Product of State in 1999.

This magnetic drum separator is mainly applied in follow occasions:

1. used for primary rough concentration, it may reject qualified tailings, increase recovery and reduce load of second-stage grinding
2. for cleaning concentration, it may increase concentrate grade and recovery
3. for high intensity magnetic separation operation, it may remove iron magnetic mineral and prevent block of magnetic materials
4. for recovery of heavy medium in a concentrator

(dm)drum length

(dm)drum diameter

N: adverse current type
B:semi adverse current type
S:aIong current type
G:dry type

drum and permanent magnetic

magnetic cobber

drum quantity (one drum no mark)
