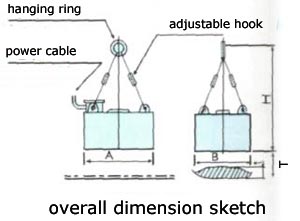

This product series is designed for long term operating shift provided with adjustable hook in its suspending system to adjust erection and installation height conveniently.lt produces almost the same magnetic field along its width direction (in size B). Thus ,it is suitable for removing the magnetic tramp iron from rare thick material bed and corns.wooden shavings,sugar crane residents, scissoring raw material and chemical raw material under light stack weight.
| Model | T(mm) Erection height |
(mm) Belt width | voltage (V) | power (KW) | Mass (kg) |
(mm) overall dimension | Commutation Controlling unit | ||
|---|---|---|---|---|---|---|---|---|---|
| length | width | height | |||||||
| MC23 5035L (RCDB-4) | 180 | 400 | 110 | 1.02 | 268 | 500 | 350 | 880 | SSTM-1.5D-D |
| 7045L (RCDB-6) | 200 | 600 | 110 | 1.88 | 508 | 700 | 450 | 1000 | SSTM-3.1D-D |
| MC23 9060L (RCDB-8) | 220 | 800 | 110 | 3.1 | 1150 | 900 | 600 | 1100 | SSTM-3.1D-D |
| MC23-11075L (RCDB-10) | 260 | 1000 | 220 | 4.3 | 2050 | 1100 | 750 | 1300 | SSTM-6.2D-D |
| 10C23-130140L (RCDB-12) | 360 | 1200 | 220 | 6.8 | 4200 | 1300 | 1400 | 1500 | SSTQ-9.3D-D |
| MC23-150110I, (RCDB-14) | 380 | 1400 | 220 | 7 | 4600 | 1500 | 110 | 1700 | SSTQ-9.3D-D |
| Note: This MC series product introduces Japanese production standard; Series RCDB are previous deparment standard. | |||||||||
